Description

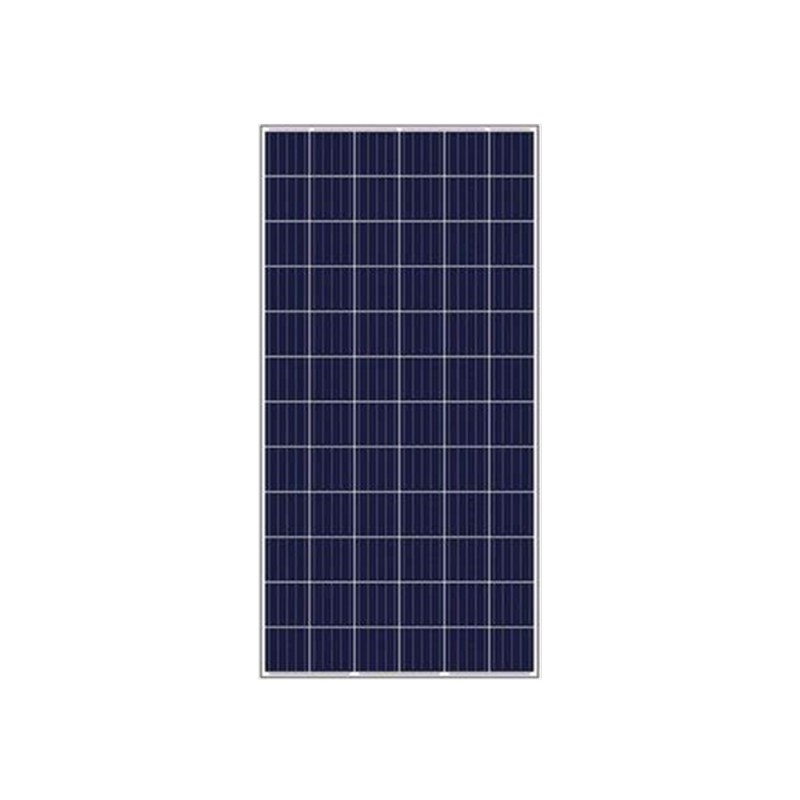

CNBM 330W Solar Panel is a durable and efficient 330W solar panel. Ideal for off-grid/rooftop applications, these 330W solar panels ensure high-quality performance.

• The CNBM 330W Polycrystalline Solar Panel is 72-cell and comes with a 10-year product and 25-year output power warranty
• Our CNBM 330W solar panel is also durable and lightweight, so it’s ideal for use in solar installations.
• Solar panels harness sunlight and convert it to electricity, powering lights and appliances efficiently.
• Solar power is becoming increasingly popular because it provides clean energy.

330W Solar Panel Characteristics.

• Rated Maximum Power (Mp): 330W.
• Power Tolerance: 0 – +_5W.
• Cell Efficiency: 18.70%.
• Open Circuit Voltage (Voc): 47.0V.
• Maximum Power Voltage (Vmp): 37.5V.
• Short Circuit Current (Isc): 9.38A.
• Maximum Power Current (Imp): 8.89A.

CNBM 330W Solar Panel Performance Parameters

• Type of Cells: Poly-crystalline, 156.75 X 156.75mm.
• Cell Arrangement: 72 (6 x 12): Cell Arrangement.
• Dimensions: 1956 x 992 x 40mm.
• Weight: 22.8kg.
• Front Cover: 3.2mm Tempered Glass.
• Frame Material: Silver Anodized aluminium alloy.
• Junction Box: IP67/1P68.
• Cable: 4mm2, 900mm.
• Connector: MC4 Compatible.

Warranty

• 10-year product warranty.
• 10 Year 90% of Min. rated output power.
• 25-year 80% of Min. rated output power warranty.
